Anti-Slip and Waterproof Grips Warmer Kit Intelligent Control Heater Kit with Fuse

Input voltage: DC12V

Power: 3 Levels, 8W-12W-16W

Cable length: 66CM (heating sheet to power switch) 55CM (Power switch to Igniton Switch

Working Temperature: -40°C---+100°C

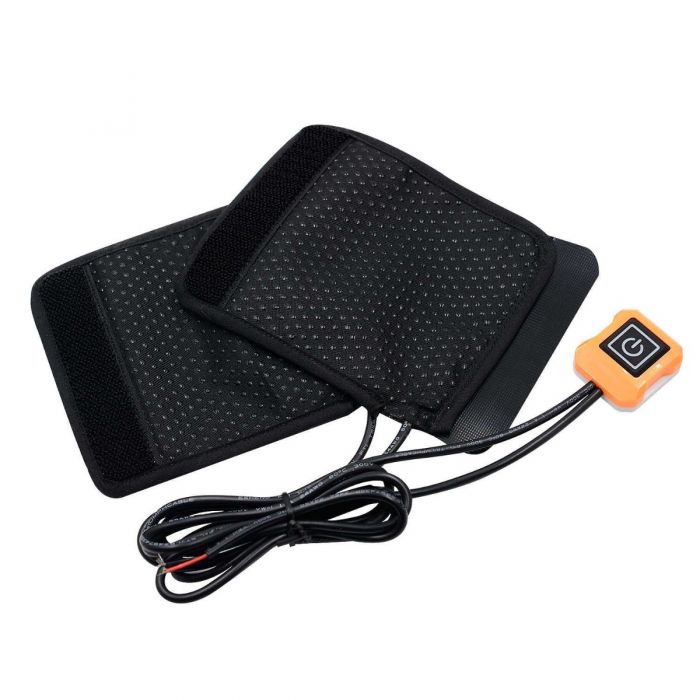

Material:

(heating sheet) composite fiber heating wire + black non-woven fabric,
(L bracket) stainless steel

Handle temperature: Low temperature 40 °, medium temperature 50 °, high temperature 60 °

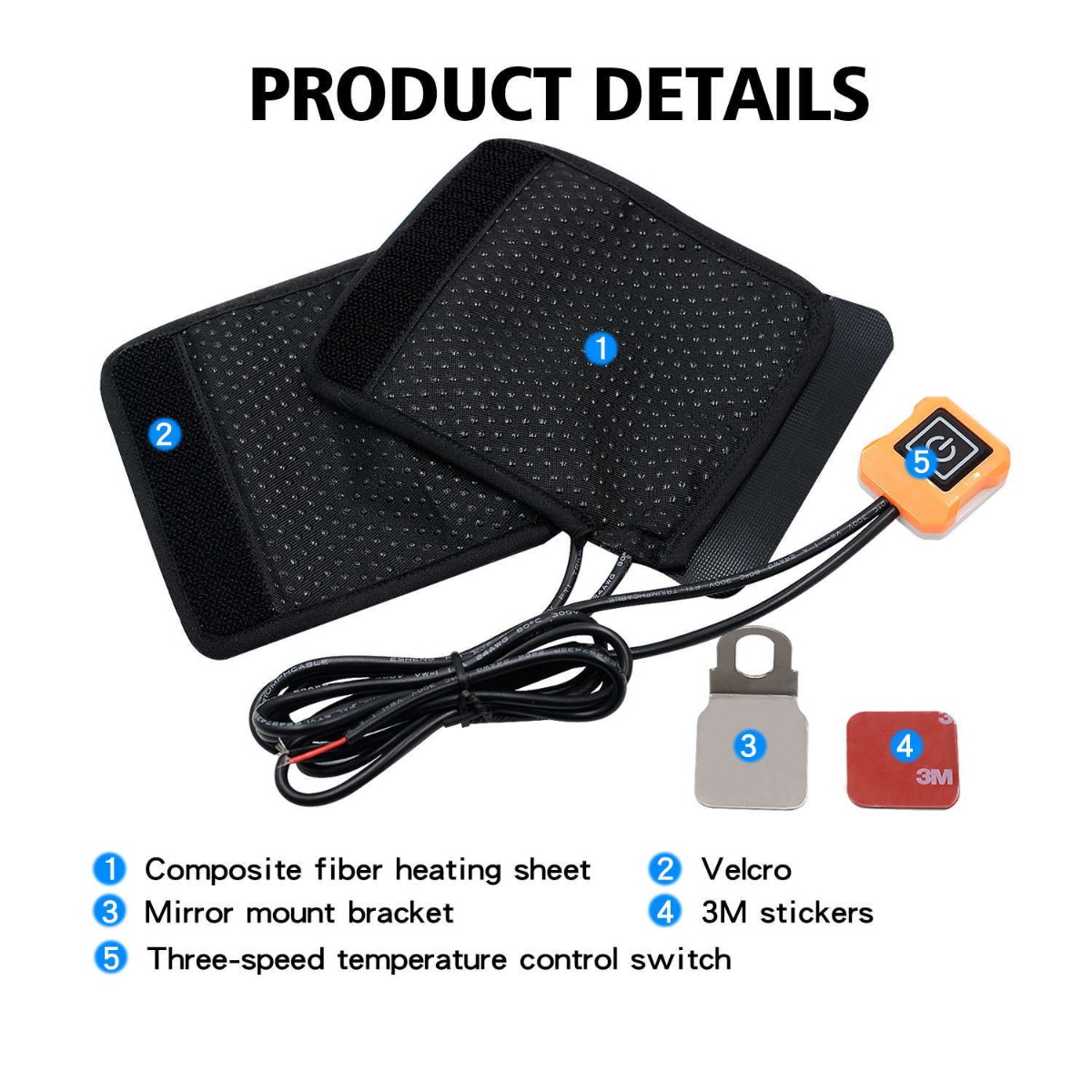

Accessories: Heat shrinkable tube sleeve * 2, Rearview mirror bracket * 1 Cable tie * 3, Insulating tape * 1, 3M adhesive * 1

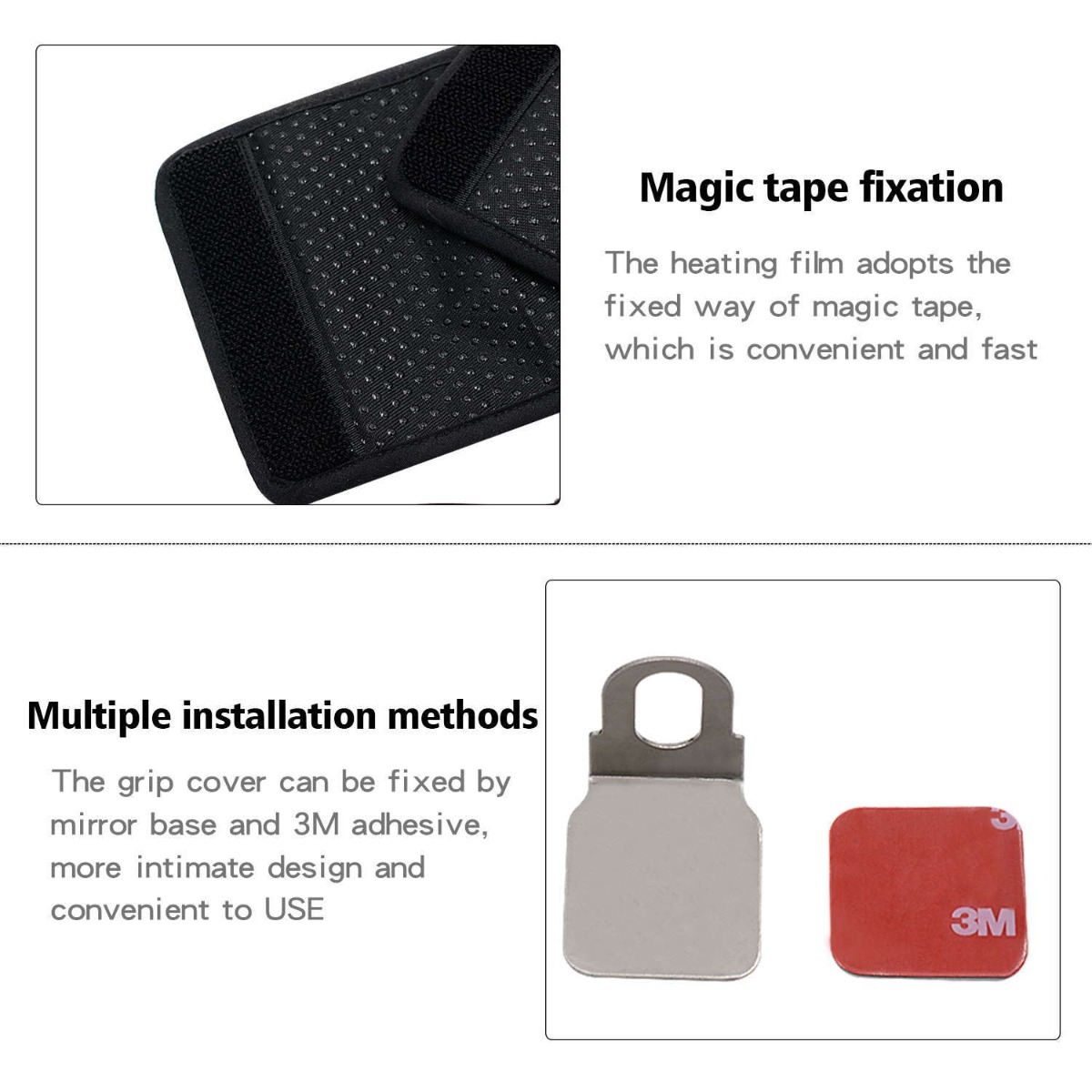

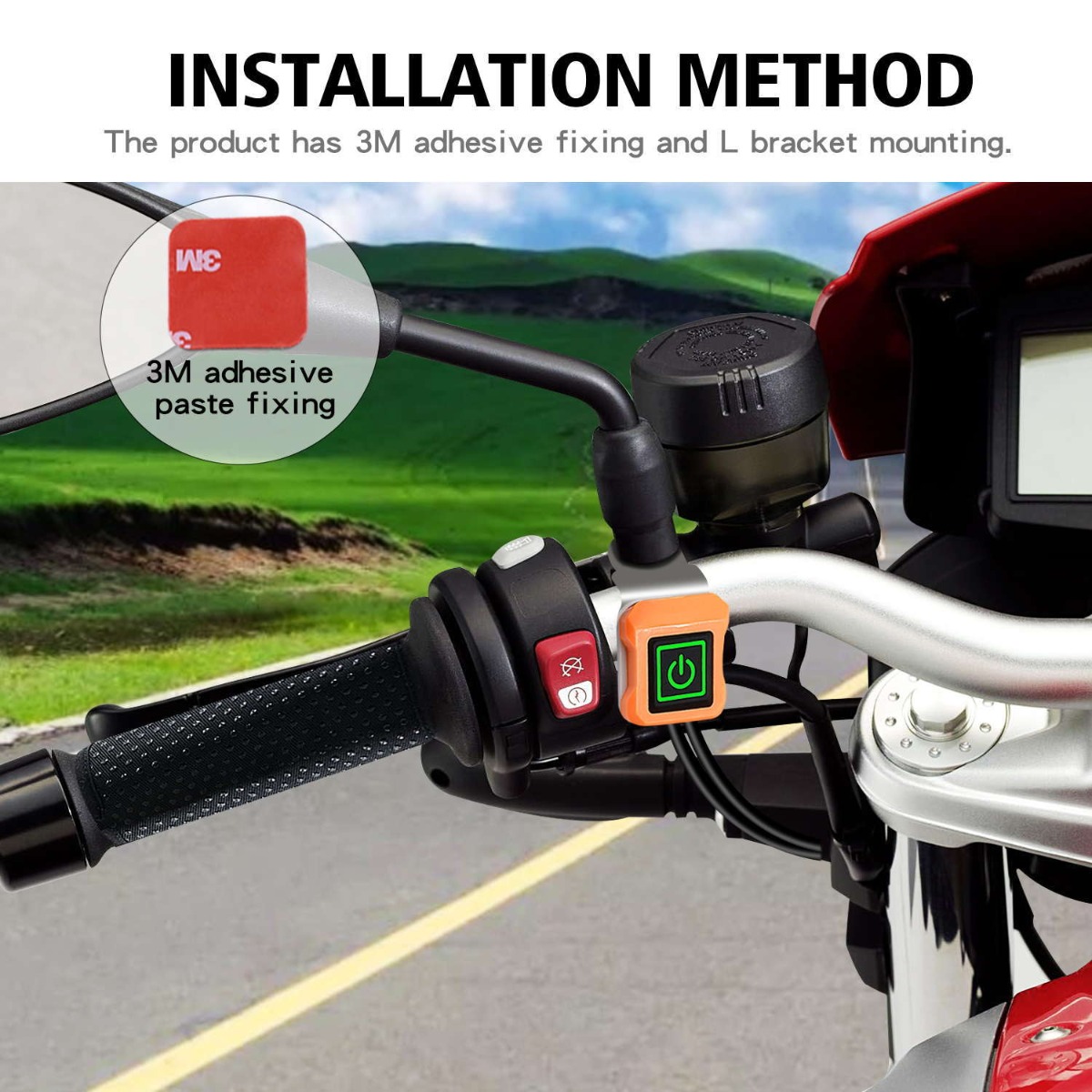

Installation method: 3M glue fixed, L bracket lens holder fixed

Wiring method:

1. Connect to the electric door lock (behind the key) of the motorcycle, the red wire is connected to the positive output wire of the electric door lock, and the color wire is connected to any negative pole on the car or grounded. This method is suitable for, do not want to use Standby, but it's easy to forget to turn off the switch

2. Connected to the positive and negative positions of the battery, red is connected to the positive electrode of the battery +, and the color line is connected to the negative electrode of the battery -. Because this electric heater has added the function of automatic shutdown on standby, Don't worry about running out of batteries when you turn on the standby mode (recommended to turn on the standby mode in advance)

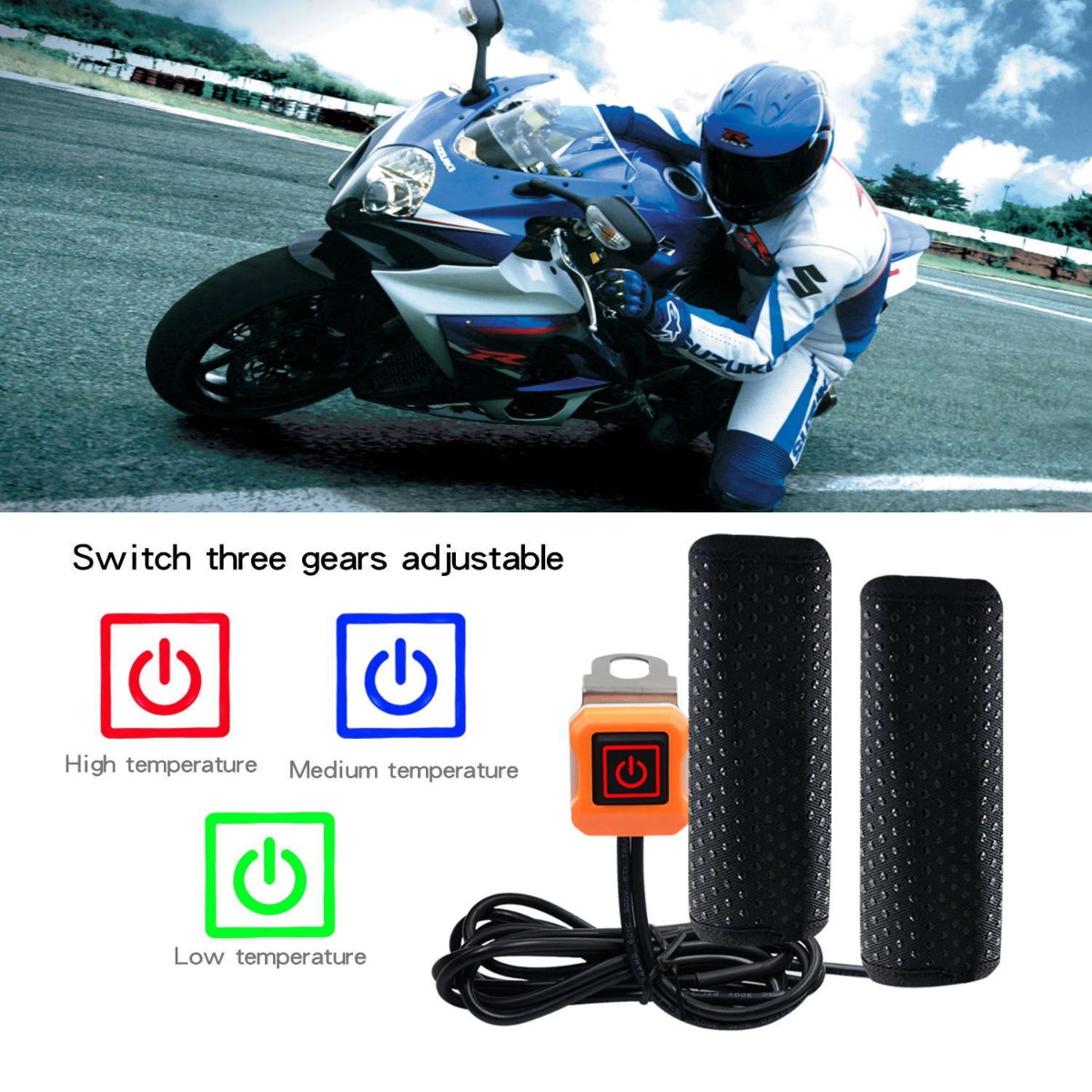

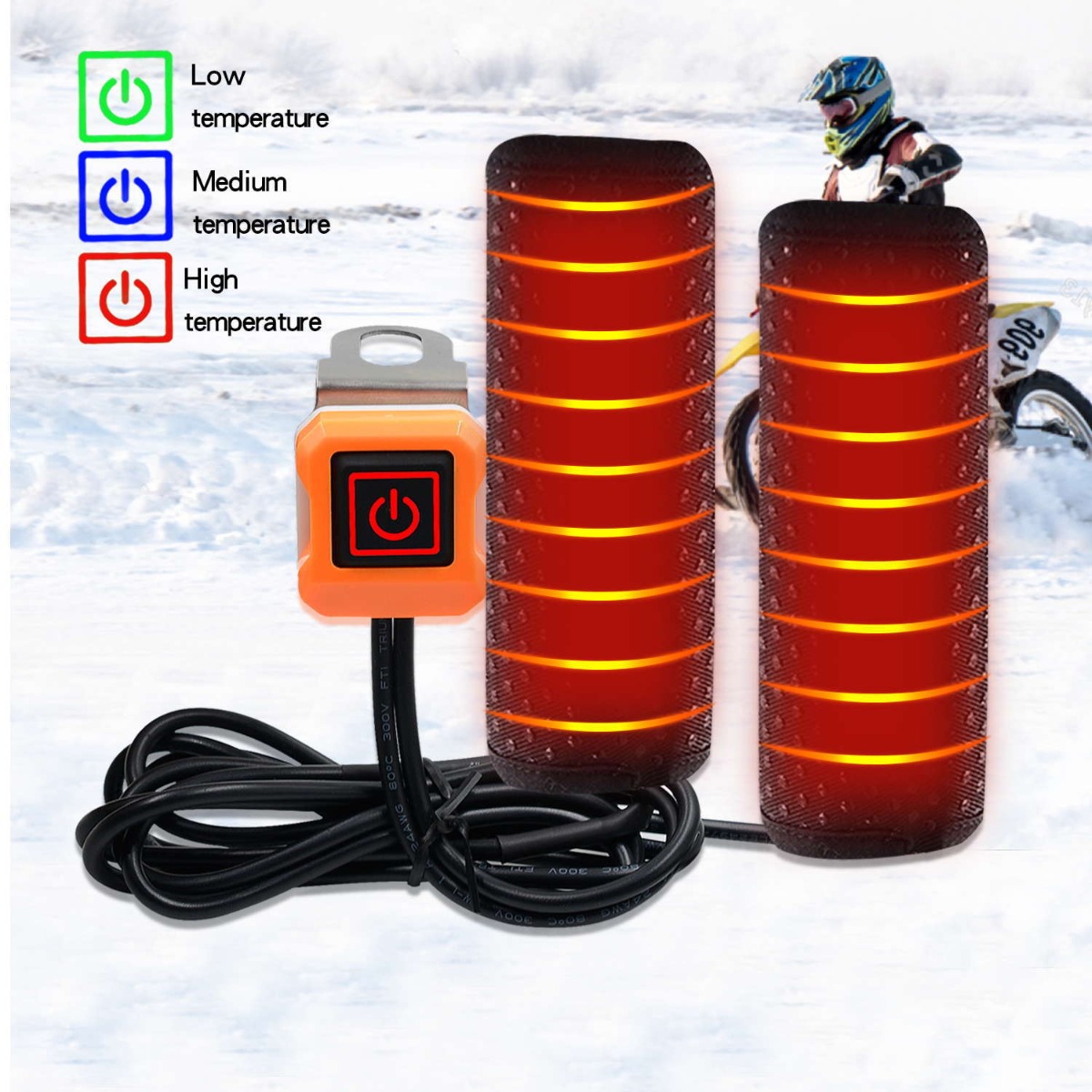

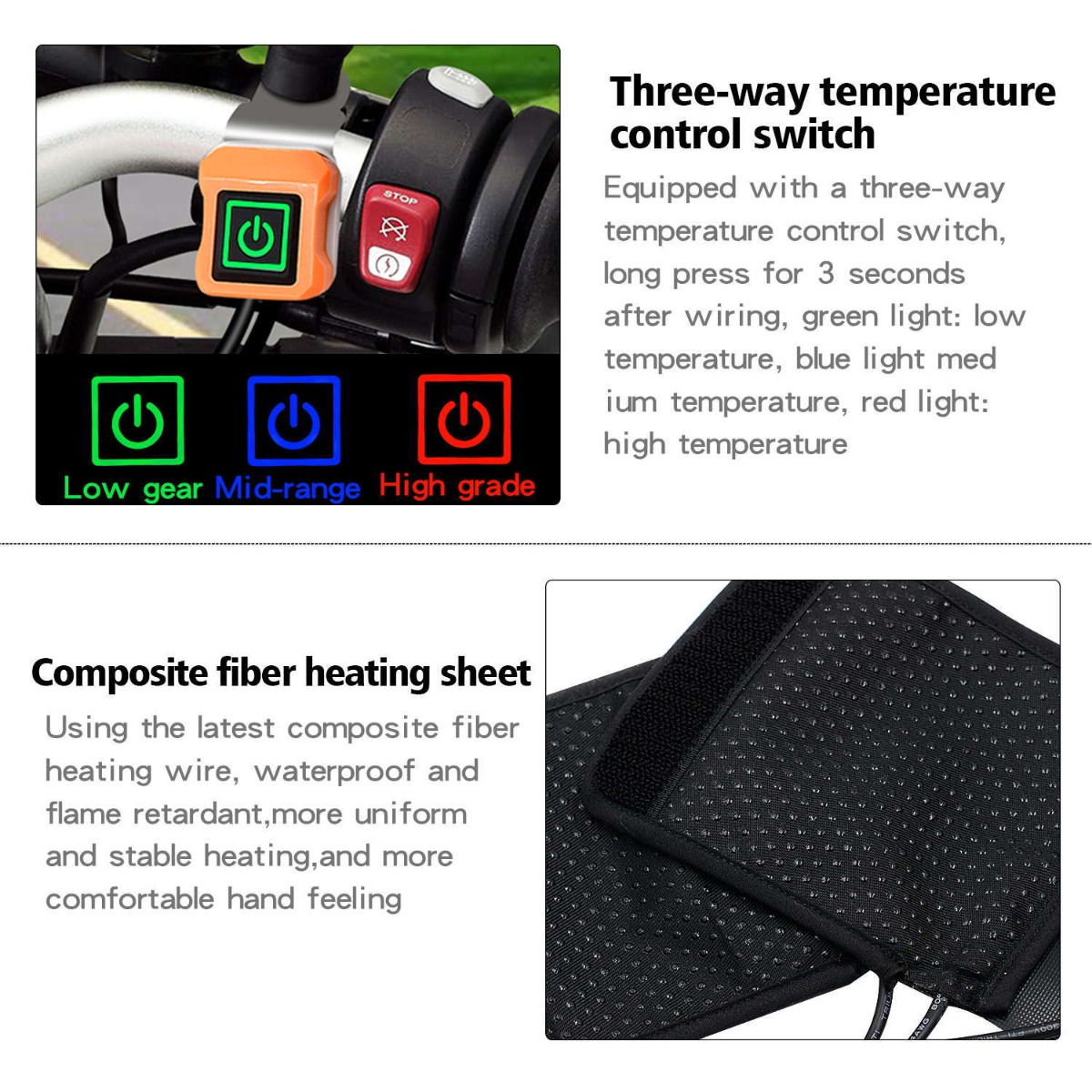

How to use the switch:

Press and hold for 3 seconds to turn on, the red breathing light will turn on, and it will automatically turn blue after reaching a certain temperature.
Double-tap to change the blue light to medium temperature, double-tap to turn green, the temperature is the lowest, and three-tap to red
High temperature, press and hold for 3 seconds to shut down, and turn off automatically after 2 hours of standby, no longer need to worry about virtual power consumption

Features:

(1) Use the latest composite fiber heating wire, waterproof and flame retardant, more uniform and stable heating, more comfortable feel
(2) Built-in intelligent temperature control chip, three-stage temperature adjustment, intelligent temperature control is more secure
(3) Fast heating in 10 seconds, large heating area

Note: When wiring, always connect the positive electrode, the color connection negative electrode will not turn on if the reverse light is connected, but the handlebar will be hot. At this time, don't worry, disconnect and reconnect according to the correct wiring method.
