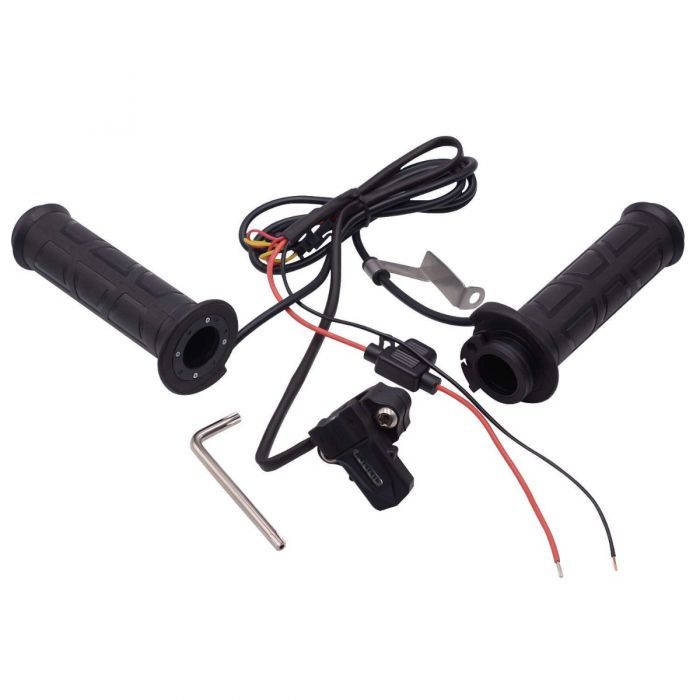

High quality Heated Grips with 5-Way Switch for Motorcycle and Electric Bike

Molded Silicone and upgraded internal chip

Snail design for outgoing cable.

Removable end cover, the end of handle can be open or sealed.

Fits most 7/8" handlebars

This Heated Grips offer five different heat settings to get you through a chilly evening or a cold winter. The 5-way switch can adjust the temperature from 40℃-125℃, same way can result in different temperature accoding to the outside temperature.

Double throttle buckle with wider installation ranges

Net weight: 304g
Gross weight: 329g
Product color: Black
Length of grip: Left: 128mm; Right: 140mm
Diameter of handle: 22mm
Input voltage: 12V
Power: 35W
Temperature: Adjustable from 40℃-125℃
Switch type: 5-way switch
Application: 12V, 22mm handle motorcycle, electric bike, etc...

Note:
1. Don't twist the grip too much when installing the left one, or the heating wires will be shifted.
2. With the balanced iron model,please adjust its installation position.Don't squeeze the grip when tighten the screws, and the balance iron is slightly separated from it.If the balance iron installation position could not be adjusted,please add a pad between balance iron and grip to separate them, if squeeze the grip excessively,it may cause difficulties to use the temperature adjustment switch,heating wire extrusion and other non-normal damages.

Installation instructions:
1. Remove the original grips from motorcycle
2. Wet the inner hole with soapy water with the left hand, and do not twist too much during installation
3. When installing the balance iron with the left hand,adjust the position of the balance iron to be slightly separated from the handle.Do not squeeze the handle when tightening screws
4. If the left hand grip slides on handlebar,remove the balance iron and fix it with a few drops of 502 glue from the end of the handle
5. Red wire is connected to the positive pole,and black wire is connected to the negative pole.Temperature cannot be adjusted if reverse connection.
6. It should leave enough power wires for rotation when installing the left hand grip.
