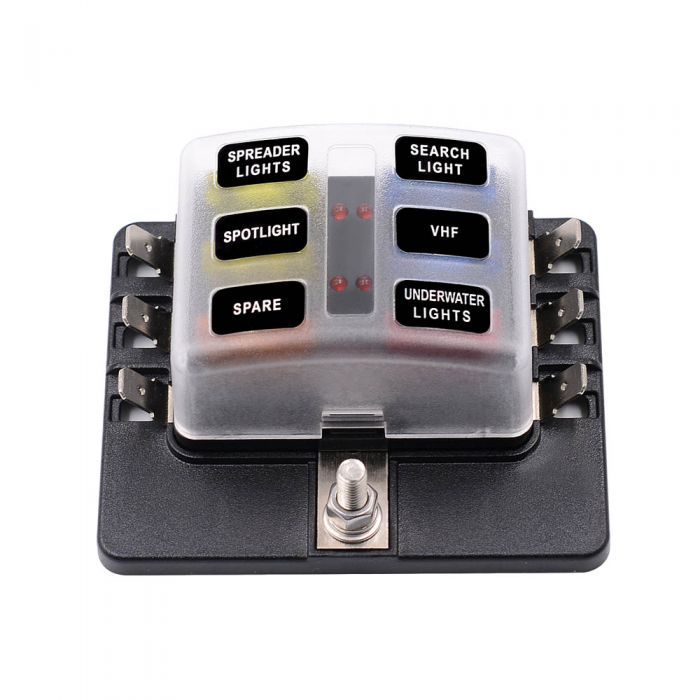

Phoenix Contact terminal Fuse block Fuse box with led indicator

Rating:
83% of 100
Add Your Review 38 Ratings
$16.98
In stock
SKU
TT-CREFB579B
  • Buy 5 for $13.28 each and save 22%
  • Buy 10 for $12.00 each and save 29%
flame-resistance, high-low temperature resistant material
multiple output
Red led indicator, and attached with name stickers
additional double fuses in the package for free

Weight: 95g

Size: 7X8.5X3.5cm

Material: PBT body, PC waterproof dust cover, nickel-plated copper connection terminal, PPX40 sticker

Input rated voltage: 32V

Input rated current: 100A

Input wire specifications: #4-6 AWG

Output maximum current: 30A per circuit

Output wire specifications: #12-16 AWG

Indicator color: red

[Indicator function]: When the red LED is lit, it means the fuse has been disconnected, you need to replace the fuse in time to continue running.

It can be installed on cars,trucks, SUV, RV, bus, yacht, boats, ships, etc. It can be directly connected to the line of any electric appliance on the car/ship [eg: roof lamp, car headlight, sight width lamp, fog lamp, warning light, car refrigerator, car charger, car fan, car TV, etc.

Accessories: sticker X1; self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuse X2

[Fuse action]: When the circuit malfunctions or is abnormal, the current is continuously increased, and the increased current may damage some important devices or valuable devices in the circuit, and may also burn the circuit or even cause a fire. The fuse protects the electronic device from overcurrent and also protects the electronic device from serious damage caused by internal faults. Therefore, each fuse has a rated specification, and the fuse will blow when the current exceeds the rated specification. If the fuse is correctly placed in the circuit, the fuse will cut off the current when the current abnormally rises to a certain height and a certain temperature, thereby protecting the safe operation of the circuit.

Features:

[1] This fuse block is made of PBT which is flame-resistance, high-low temperature resistant and environmental protection materials, fully meets the requirements of "the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and should not be broken during use. Conditions of deformation, combustion, short circuit, etc."
[2] This fuse block is 1 input and multiple output design. It can be connected to the positive pole of the battery directly with one wire. One wire is connected to the fuse box, and then the terminal of the fuse box is connected to the positive electrode of different electrical appliances. It is very simple and convenient.
[3] This fuse block has a red LED light, corresponding to each fuse connected to the appliance, when the fuse is disconnected, the red light will be on, you can immediately find out which fuse is broken, convenient and timely processing
[4] The product gift sticker can be attached to the electrical appliance we have connected according to the name of the sticker. When the fuse is broken and the red light is on, we can distinguish which appliance has a problem in the first time. save time and energy
[5] The fuse block is delivered with double fuses. When it is applied, and the fuse is burned off, it can be replaced immediately from the spare fuse, and the spare fuse is sent with different Amps

More Information
Color Black
Features Brand New
