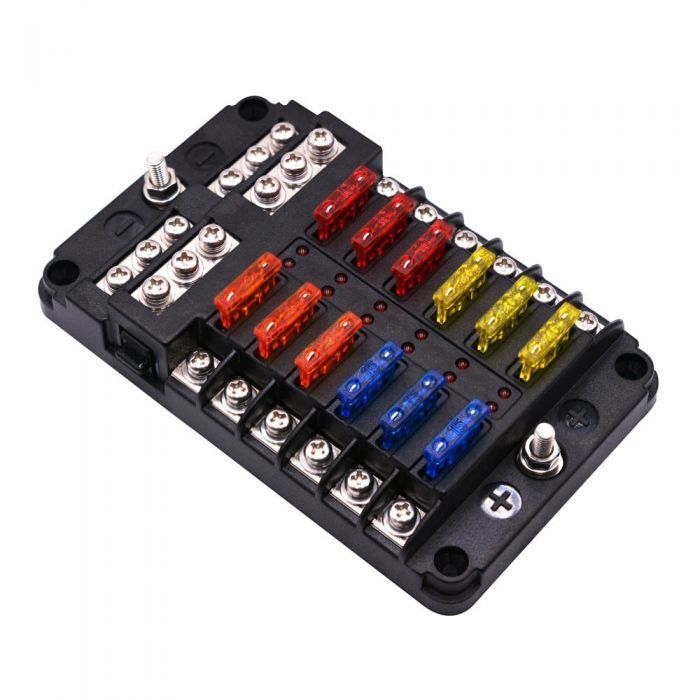

Screw terminal Fuse block with multiple independent circuit and led indicator

Rating:
94% of 100
Add Your Review 79 Ratings
Special Price $19.98 Regular Price $21.80
In stock
SKU
TT-CREFB664A
  • Buy 5 for $18.60 each and save 7%
  • Buy 10 for $17.90 each and save 10%
Multiple output
Flame-resistance, high-low temperature resistant material
Busbars and fuse clips are nickel-plated copper for corrosion resistance and optimum conductivity. fasteners are made of stainless steel.
Red led indicator, and attached with name stickers
Additional double fuses in the package for free
Easy installation
Circuit 6 Circuit 12 Circuit
Weight 176g 279g

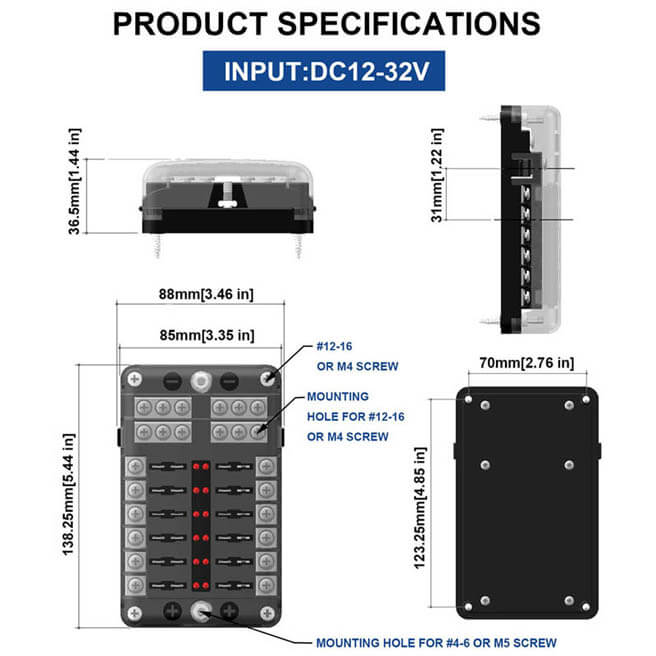

Size 87.75*85*36.5mm 138.25*85*36.5mm
Accessories Sticker X1; Self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuse X2 Sticker X1; Self-tapping screw X4; 20A fuse X6; 15A fuse X6; 10A fuse X6; 5A fuse X6

Material: PBT body, PC waterproof dust cover, nickel-plated copper connection terminal, PPX40 sticker

Input rated voltage: 32V

Input rated current: 100A

Output maximum current: 30A per circuit

Light color: red

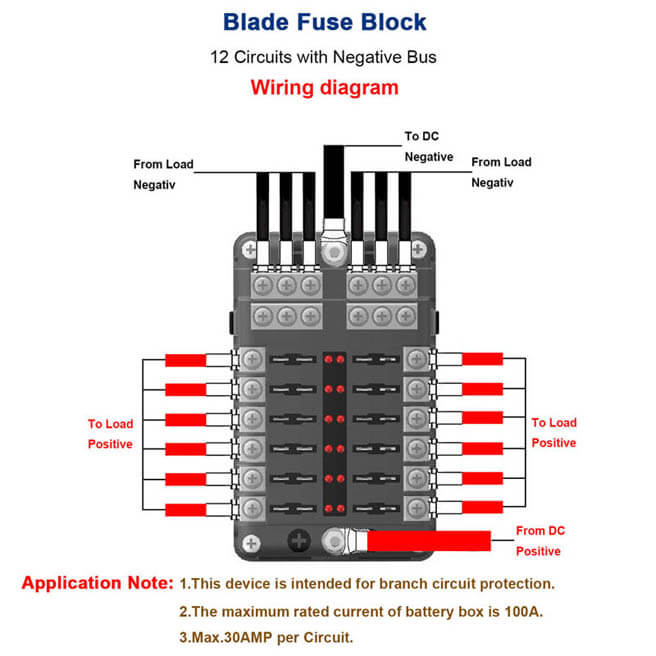

[Main line terminal]: M5 threaded stud

[Main line wire]: #4-6

[Single line terminal]: M4 threaded stud

[Single wire]: #12-16

[Indicator function]: When the red LED is lit, it means the fuse has been disconnected, you need to replace the fuse in time to continue running.

It can be installed on cars, Suv, RV, bus, yacht, boat, etc. It can be directly connected to the line of any electric appliance on the car/ship [such as: roof lamp, car headlight, sight width lamp, fog lamp, warning light, car refrigerator, car charger, car fan, car TV, etc.]

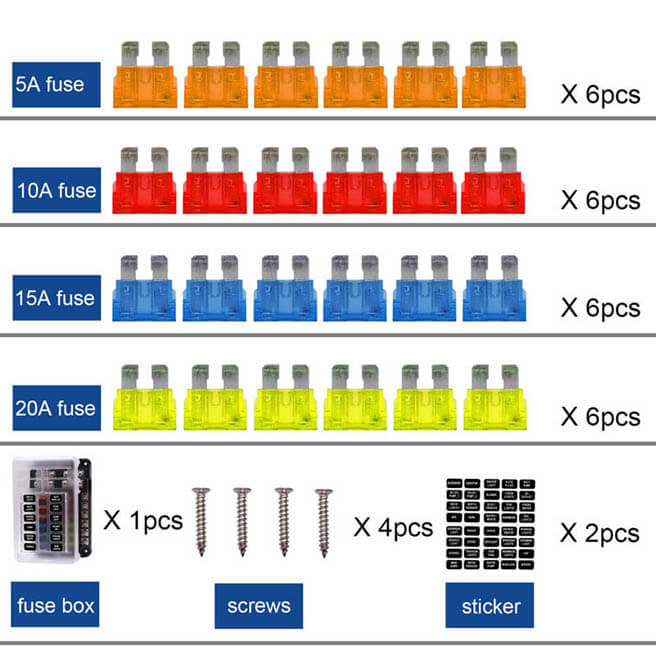

[Accessories]: Sticker X1; Self-tapping screw X4; 20A fuse X6; 15A fuse X6; 10A fuse X6; 5A fuse X6

[Fuse action]: When the circuit malfunctions or is abnormal, the current is continuously increased, and the increased current may damage some important devices or valuable devices in the circuit, and may also burn the circuit or even cause a fire. The fuse protects the electronic device from overcurrent and also prevents serious damage to the electronic device due to internal faults. Therefore, each fuse has a rated specification, and the fuse will blow when the current exceeds the rated specification. If the fuse is correctly placed in the circuit, the fuse will cut off the current when the current abnormally rises to a certain height and a certain temperature, thereby protecting the safe operation of the circuit.

Features:

[1] This fuse block is made of PBT which is flame-resistance, high-low temperature resistant and environmental protection materials, fully meets the requirements of "the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and should not be broken during use. Conditions of deformation, combustion, short circuit, etc."
[2] All busbars and fuse clips are nickel-plated copper for corrosion resistance and optimum conductivity
[3] All fasteners are made of stainless steel, the output end is fixed by tightening screws, which can be installed more quickly, and the fuse box is fixed by self-tapping screws, which makes installation easier and safer.
[4] This fuse block has a red LED light, corresponding to each fuse connected to the appliance, when the fuse is disconnected, the red light will be on, you can immediately know which fuse is broken, convenient and timely processing
[5] The name sticker can be attached to the electrical appliance we have connected according to the name of the sticker. When the fuse is broken and the red light is on, we can tell the first time which electrical appliance has a problem. save time and energy

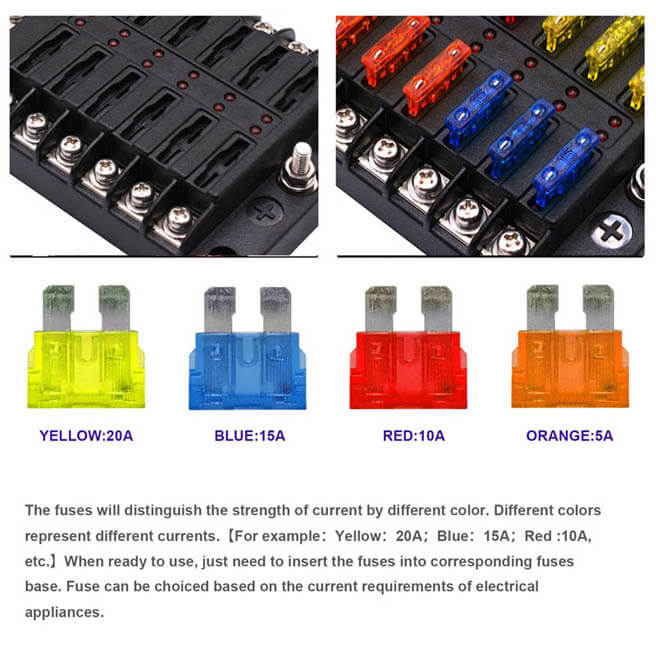

[6] The product is delivered with double fuses. When the fuse is burned off, it can be replaced immediately from the spare fuse, additional fuses of multiple Amps is attached in the package for free, and the Amps of fuse can be selected according to the current appliance.

Screw terminal Fuse block with multiple independent circuit and led indicator Screw terminal Fuse block with multiple independent circuit and led indicator Screw terminal Fuse block with multiple independent circuit and led indicator Screw terminal Fuse block with multiple independent circuit and led indicator

More Information
Color Black
Features Brand New
