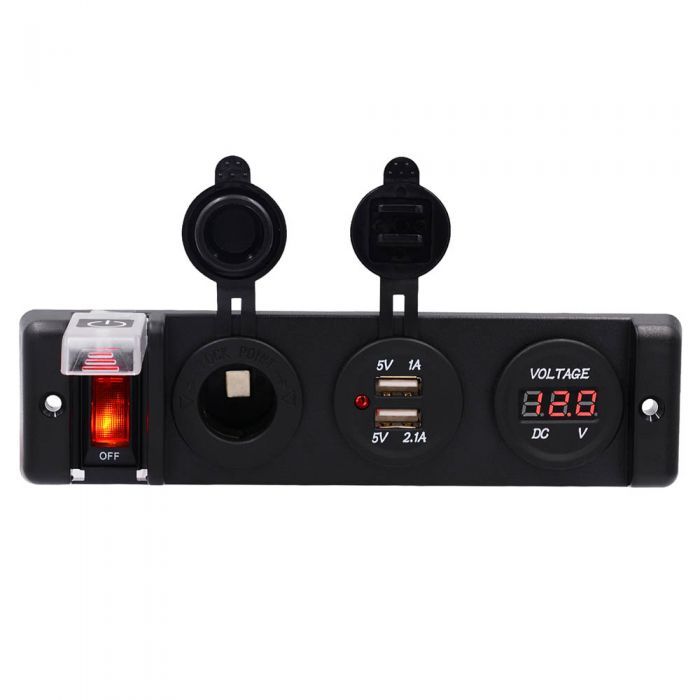

Auto reset Switch Panel with dual USB socket and 12V auxiliary power outlets

Weight: 111g(3-position)/138g(4-position)

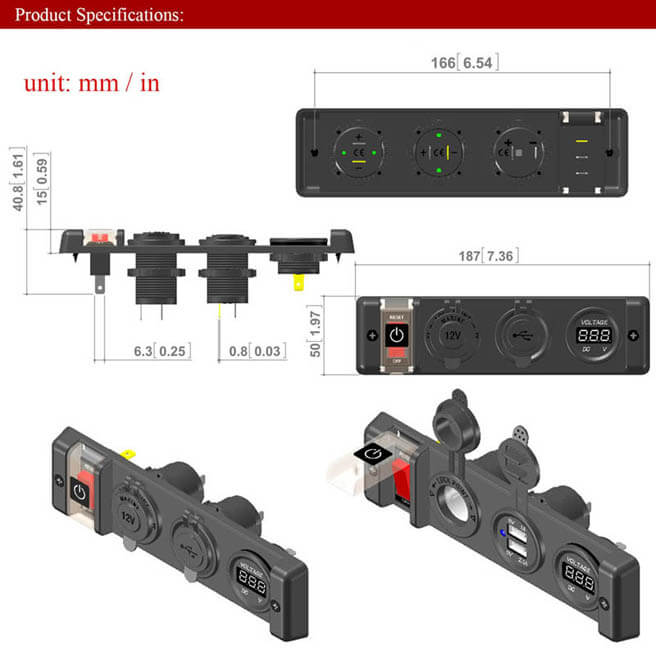

Size: 13x5x7cm(3-position)/18.7x5x7cm(4-position)

Opening size: 9x2.9cm(3-position)/14.6x2.9cm(4-position)

Product material: ABS/PC anti-flame retardant high and low temperature environmentally friendly material

Light color: red

Input voltage: DC12V

Output voltage: 5V

Output current: 3.1A

Working temperature: -25°C-80°C

Protection level: IP66

Voltmeter test range: 6-30V

Maximum current withstand by a single switch: 16A

Function: The switch has overload, short circuit and under voltage protection functions, and has the ability to protect the line and power supply; the cigarette lighter seat can be used to take power; USB can supply power to the mobile phone tablet and other devices.

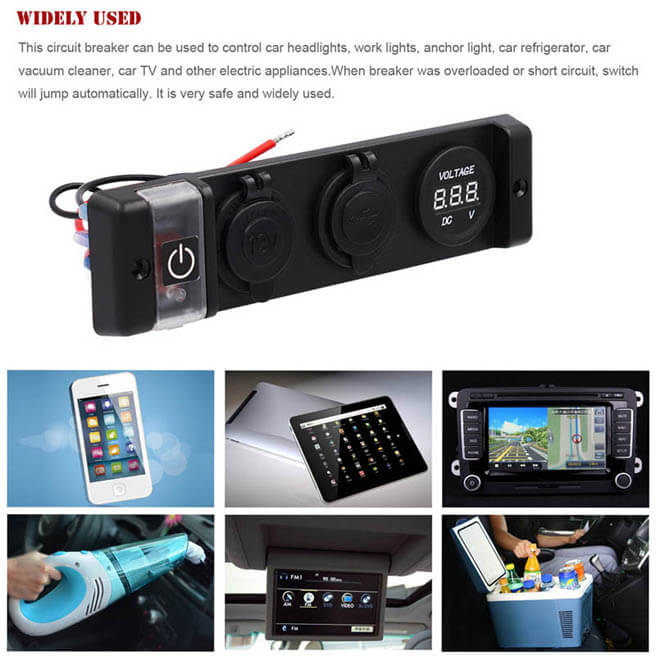

It can be installed in small car, off-road vehicle, sports car, SUV, bus, boat, yacht and other transportation tools. It can be used to supply power to car refrigerators, car vacuum cleaners, car TVs, etc. It can be used for power supply of mobile phones, tablets, navigation, GPS, etc.

Features:

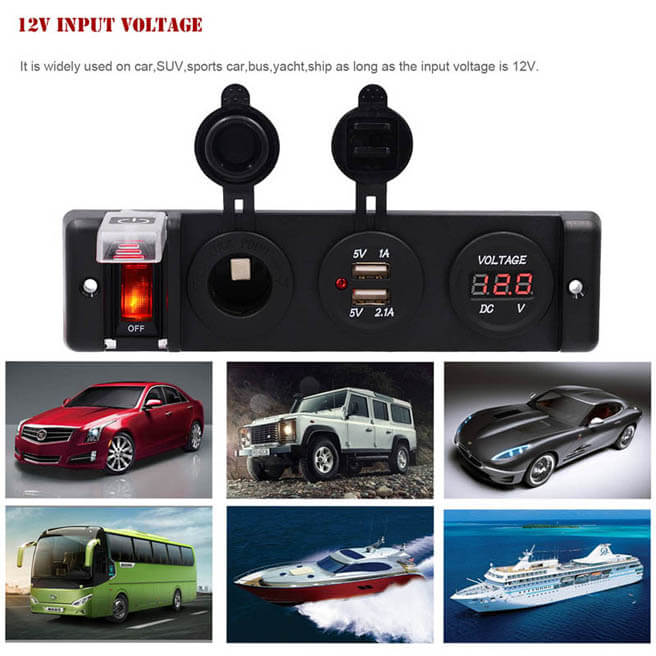

[1] The input voltage of this switch panel is DC12V, which can be used in small car, off-road, SUV, yacht, boat and other transportation tools.
[2] The switch has overload, short circuit and under voltage protection functions to protect the safety of the line and power supply.

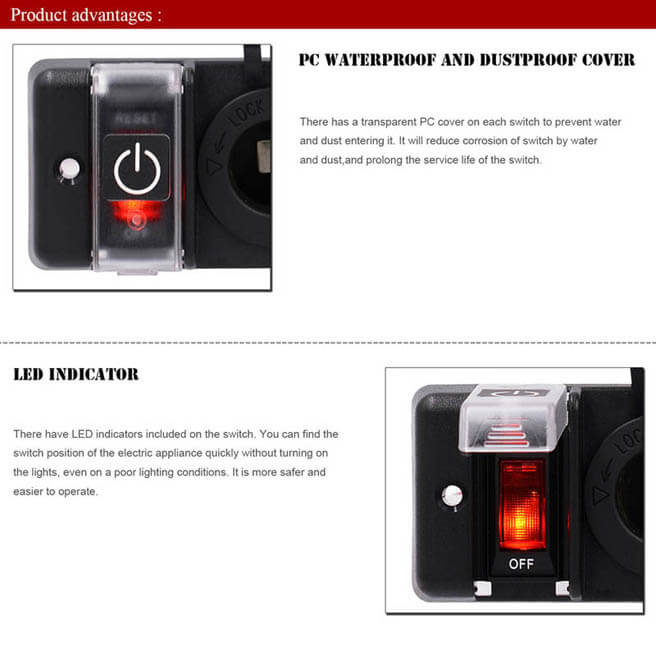

[3] The panel has a waterproof and dustproof cover design to prevent water and dust from entering the switch, causing corrosion to the switch and longer service life.
[4] The switch is built with LED light. In the boat with poor lighting conditions, the switch can be quickly found, which is very convenient.

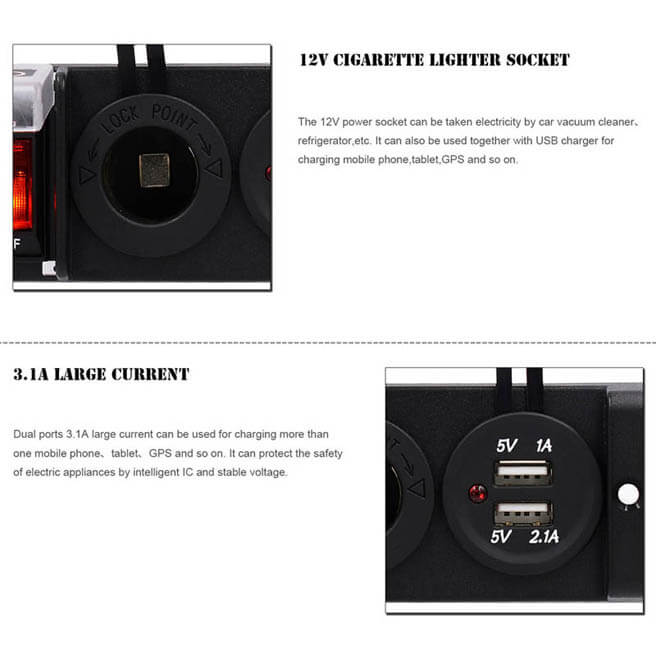

[5] 3.1A dual USB high current, can output power for more than one mobile phone, tablet, navigation, GPS, etc.

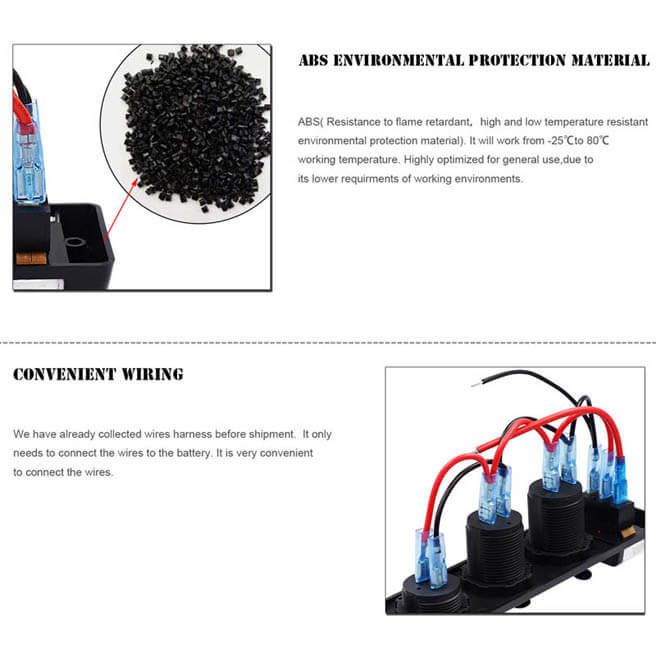

[6] This panel is made of ABS/PC, flame retardant, high and low temperature resistant, environmental friendly material.

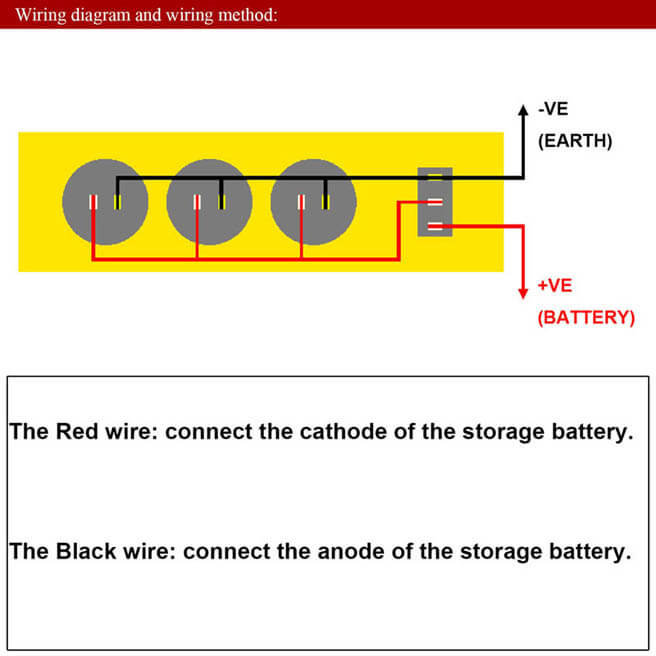

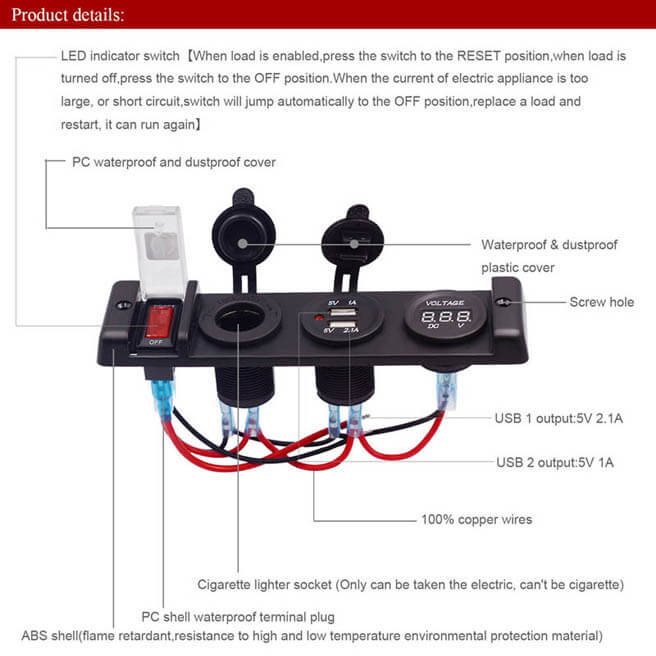

[7] Before the panel being shipped from the factory, most of its terminals already connected inside, leaving only the positive and negative poles. when you receiving the panel, you just need to connect your positive wire to the positive terminal and another to the negative terminal. It is easy for you to install this switch panel.

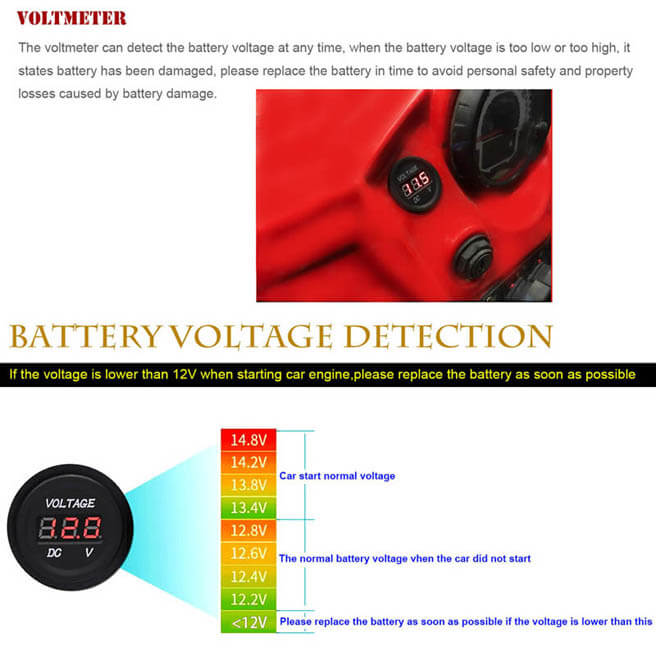

[8] The voltmeter (optional and available on 4-postion model) can detect the battery voltage on the vehicle at any time to prevent unnecessary casualties and property losses caused by battery damage
