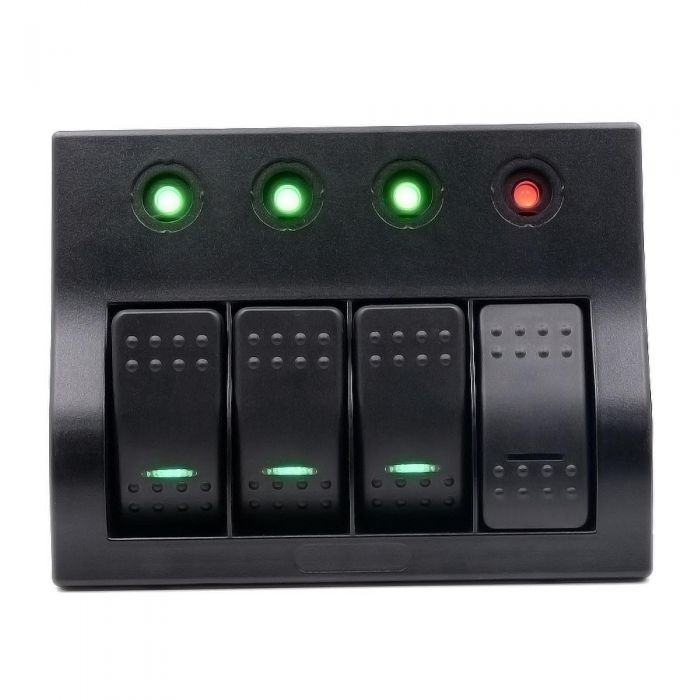

4 Pin Switch Panel with 3 switch and 1 reset switch and 2 colors indicator
- Buy 2 for $55.59 each and save 2%
- Buy 5 for $49.69 each and save 13%
- Buy 10 for $53.99 each and save 5%
Two color indicator indicate power status by changing light color between green and red.
high and low temperature resistant, flame retardant material
Weight: 296G
Size: Length: 13cm Width: 10 cm Height: 7.5cm
Opening size: length: 10.5cm width: 8cm
Material: ABS high temperature resistant, flame retardant and environmentally friendly material
Light color: it is green when power off, and red when power on.
Product color: black
Working temperature: -25 ° C -80 ° C
Maximum power: 360W
Input voltage: DC12V/24V
Output current: 10A 15A
Protection level: IP65
Certificate: CE/ROHS/UL
It can be used as headlight switch, fog light switch, width light switch, car refrigerator switch, car vacuum cleaner switch, horn switch, pump switch, etc.suitable for installation of high-grade large-scale tools such as ships, yachts, motor homes, buses, etc.
Features:
[1] This Panel is a 4-position switch panel with 4 switches, which can control the switching status of 4 electrical appliances at the same time.
[2] The input voltage of the product is 12-24V, can be installed and used in all trucks of 12-24V, and the scope of use is very wide.
[3] It is made of ABS resistant to high and low temperature, flame retardant and environmentally friendly materials, and can be used in an environment with a minimum temperature of -25° and a maximum temperature of 80°.
[4] The switch panel built with a two-color indicator light. and the light color is green when the power is off and red when the power is on. It can effectively distinguish the use status of the appliance.
[5] This switch panel equiped with a reset switch also, which can be used as a horn switch or a water pump switch. Three non-reset switches can control the headlights and other electrical equipment.
| Color | Black |
|---|---|
| Features | Brand New |
