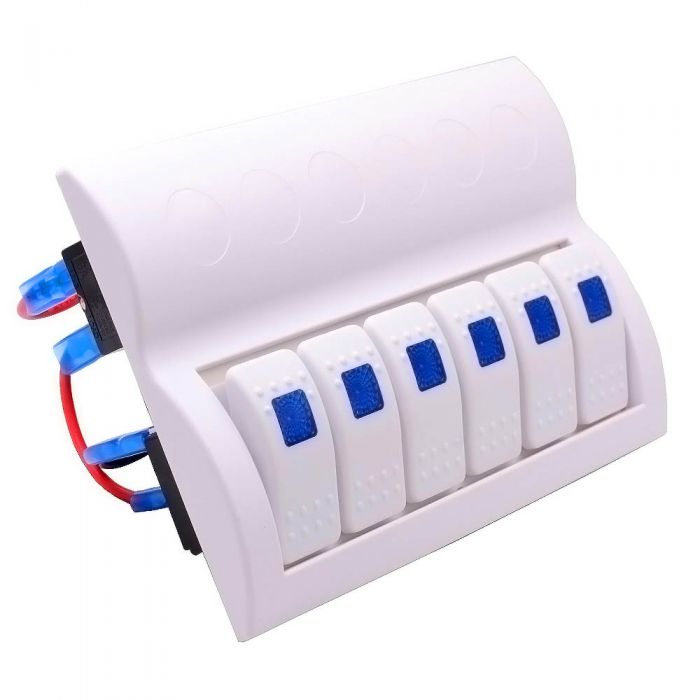

3 Pin 6 Gang Rocker Switch Panel with indicator

Weight: 400G
Size: Length: 18.2cm Width: 12 cm Height: 7.5cm,
Opening size: length: 15.2cm width: 8.5cm
Material: ABS, PC, PBT, which is high and low temperature resistant, flame retardant and environmentally friendly material
Light color: blue
color: White
Working temperature: -25 ° C -80 ° C
Maximum power: 60W-360W
Input voltage: DC12V-24V
Output current: 5A 10A 15A
Protection level: IP66
Certificate: CE/ROHS/UL
It can be used for headlight switch, fog light switch, sight width light switch, car refrigerator switch, car vacuum cleaner switch, etc. suitable for installation of high-grade large-scale tools such as ships, yachts, motor homes, boats, trucks, buses, etc.

Features:
[1] The product is a 6-position switch panel with 6 switches, which can control the switching status of 6 electrical appliances at the same time.
[2] The input voltage of the product is 12-24V, all trucks of 12-24V can be installed and used, and the scope of use is very wide.
[3] This switch panel is made of ABS, PC, PBT resistant to high and low temperature, flame retardant and environmentally friendly materials, and can be used in an environment with a minimum temperature of -25° and a maximum temperature of 80°.
[4] The switch panel has an overload protector. When the electric appliance controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically power off, and will not cause any damage to the electrical appliance. After the overload protector is pressed again, The appliance that is loaded with the corresponding current can continue to be used.
