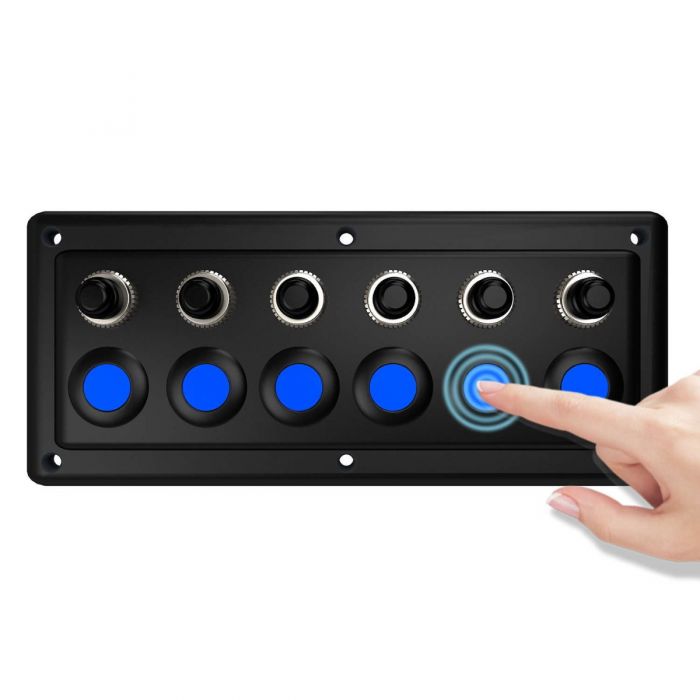

12V/20A 24V/10A Touch Switch Panel SPST ON/OFF

By touch this Touch Switch Panel, you are able to power lighting and other appliances in Caravans, Motorhomes, Vehicles, Heavy Machinery, Boats and more.

Net weight: 251G
Gross weight: 292G
Material: ABS+PC+ nylon high and low temperature environmental protection material
Product size: 15*9*10.2CM
Hole size: 11.9*4.7CM
Packing size: 13.1*12.5*22.6CM
Number of switches: 4 digits
Input voltage: DC12V-24V
Output voltage: DC12V-24V
Output current: 12V/20A 24V/10A
Working temperature: -25°C——80°C
Light color: white light when power on, blue light when switch is on
Waterproof rating: IP65
Certificates: CE/ROHS/FCC/UL
Accessories: self-tapping screws*6, functional stickers*3, anti-scratch gasket*1

Application: It is suitable for the installation and use of high-end large-scale transportation tools such as ships, yachts, RVs, buses, etc.

Features:
1. The product is a single-touch switch panel, including 4 switches, 6 switches, 8 switches,which can control the switch status of 4,6,8 appliances at the same time accordingly
2. The input voltage of the product is 12/24V, all ships can be installed and used, and the range of use is very wide
3. The product panel is made of high and low temperature resistant, flame retardant and environmentally friendly materials, and can be used in an environment with a minimum temperature of -25° and a maximum temperature of 80°
4. The product is equipped with an overload protector. When the electrical appliance controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically power off without causing any damage to the electrical appliance. After the overload protector is pressed again, install it again. Consumers with corresponding current can continue to use
