MS509 OBD2 Scanner Code Reader

MS509 OBD2 Scanner Code Reader

Features & Functions

• Works on all 1996 and later OBDII compliant US, European and Asian vehicles
• Supports 12V gasoline, diesel and hybrid electric vehicles
• Easily determines the cause of the Check Engine Light (MIL)
• Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
• Turns off Check Engine Light (MIL), clears codes and resets monitors
• Displays DTC definitions on unit screen
• Views freeze frame data
• Displays monitor and I/M readiness status (emissions)
• Identifies pending codes
• Reads live PCM datastream
• Displays live O2 sensor test data
• Graphs data (1996 and newer)
• Reads, stores & playbacks live sensor data
• Memory/battery backup for off-vehicle data review and analysis
• Multilingual menu: English, French, German, Dutch, Spanish
• Performs modules present test
• Retrieves vehicle information (VIN, CIN and CVN)
• Supports CAN (Controller Area Network) and all other current OBD-II protocols
• Supported protocols: ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM
• Built-in OBD-II DTC lookup library
• Large easy-to-read backlit LCD screen (2.8 inch black & white display)
• Supports EVAP system test
• Supports data printing

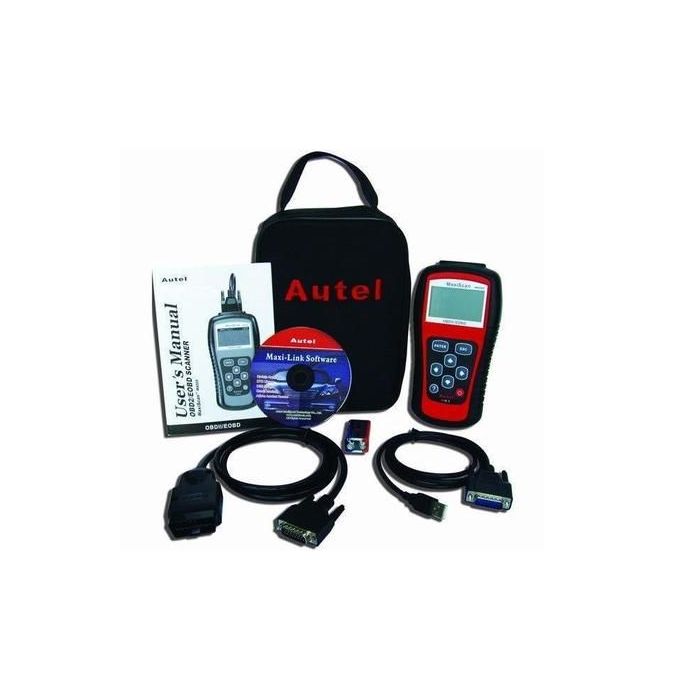

Package Contents

• 1 x Main Unit
• 1 x OBD II Cable
• 1 x USB Cable
• 1 x User Manual
• 1 x Carrying Bag

Product Specifications

• Product Size: 20 x 10 x 4 cm
• Package Size: 25.5 x 18.5 x 7 cm
• Product Net Weight: 0.665 kg
• Package Net Weight: 0.72 kg

Vehicle Coverage (Partial List)

• GM 1996 - Current Year (OBD-II)
• Ford 1996 - Current Year (OBD-II)
• Chrysler 1996 - Current Year (OBD-II)
• Toyota 1996 - Current Year (OBD-II)
• Honda 1996 - Current Year (OBD-II)
• Nissan 1996 - Current Year (OBD-II)
• All other Asian and European 1996 - Current Year (OBD-II)

Note: This scanner does NOT support JOBD (Japanese On-Board Diagnostics).

Note: Product images are for reference only. We reserve the right to update the exterior design without prior notice. All functions and specifications listed above are accurate and subject to the actual product.
